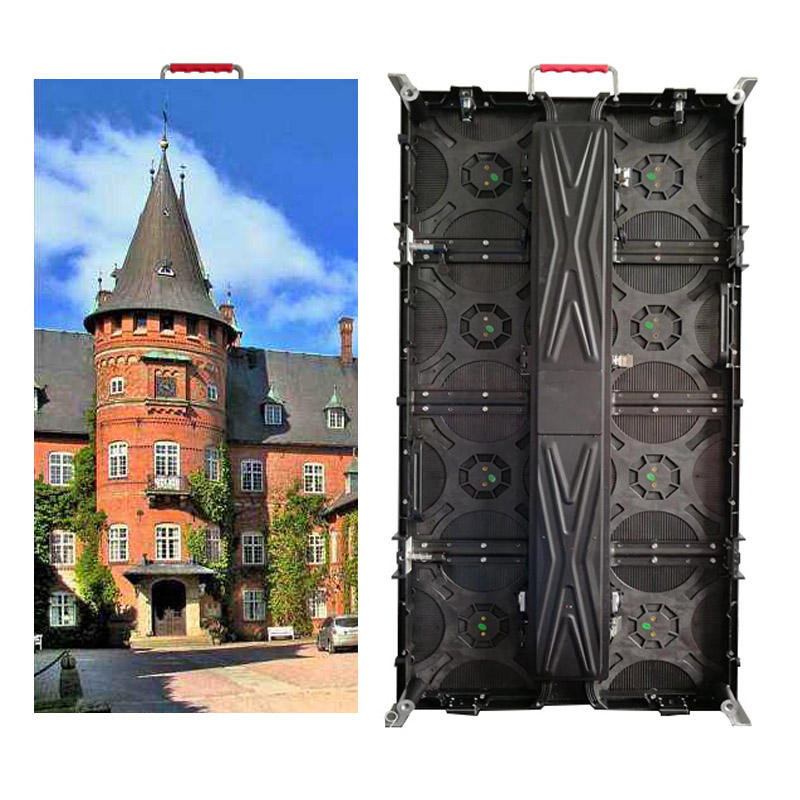

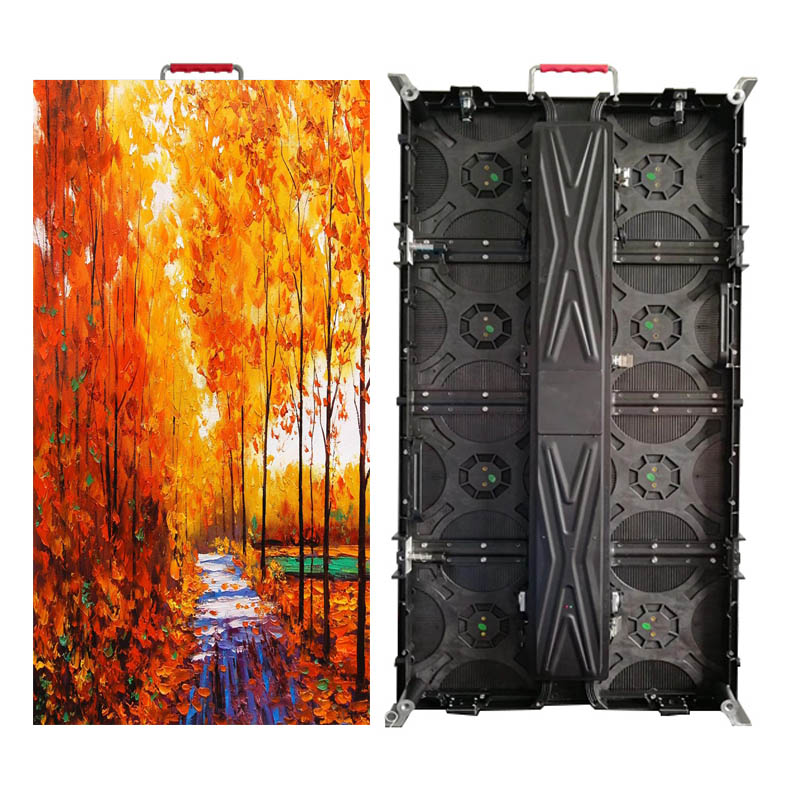

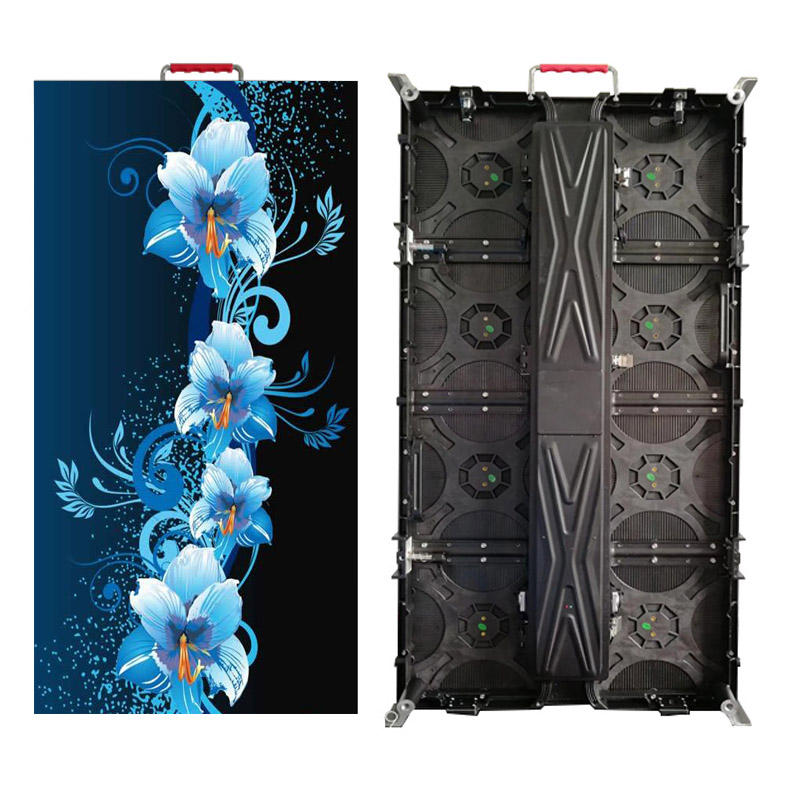

Indoor Rental LED Display-500*1000

Product Features:

● Cabinet mechanical design is easy for rigging system

● Various connection modes,such as column style,open style,stage atmosphere decoration style,etc.

● Handles on top and both sides of the cabinet

● Flight cases packing for easy transportation

● Light weight aluminum cabinet is available for option

Product Model	Rental Indoor ZS3.91	Rental Indoor ZS4.81	Rental Indoor ZS5.68	Rental Indoor ZS6.25
Pixel Pitch	3.91mm	4.81 mm	5.68 mm	6.25 mm
Module Size	250x250 mm	250x250 mm	250x250 mm	250x250 mm
Module Resolution	64x64 pixels	52x52 pixels	44x44 pixels	40x40 pixels
LED	SMD 2020	SMD 2020	SMD 3528	SMD 3528
Standard Cabinet Size	500x1000 mm	500x1000 mm	500x1000 mm	500x1000 mm
Standard Cabinet Resolution	128x256 pixels	104x208 pixels	88x176 pixels	80x160 pixels
Standard Cabinet	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Physical Density	65536 Pixels/m2	43200 Pixels/m2	30976 Pixels/m2	25600 Pixels/m2
White Balance Luminance	≥800 nits	≥800 nits	≥1200 nits	≥1200 nits
Gray Scale per Color	16384 level	16384 level	16384 level	16384 level
Contrast	3000:1	1000:1	1000:1	1000:1
Refresh Frequency	≥1920 Hz	≥1920 Hz	≥1920 Hz	≥1920 Hz
Visual Angle(Horizontal/Vertical)	140/140°	140/140°	140/140°	140/140°
Max Power	650 W/m2	650 W/m2	750 W/m2	750 W/m2
Average Power	200 W/m2	200 W/m2	220 W/m2	220 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20℃～50℃	-20℃～50℃	-20℃～50℃	-20℃～50℃
Operating Humidity	10%RH～95%RH	10%RH～95%RH	10%RH～95%RH	10%RH～95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP
