Indoor Fixed LED Display

Product Features:

● Text, graphic and video shown on the display is clear and vivid

● Big viewing angle ( H:140°; V: 140°)

● Have resolved the heat dissipation problem of high density in design completely

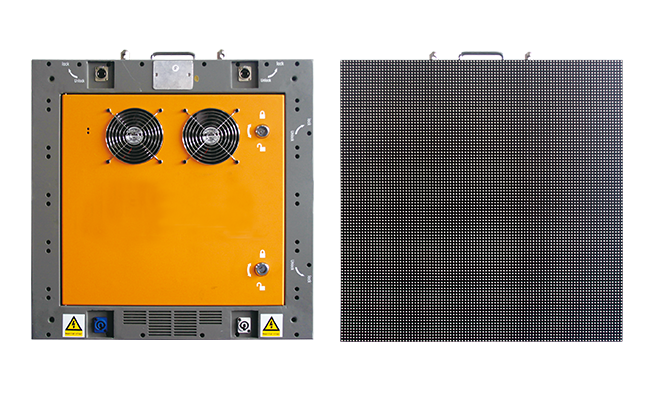

● With the modular design, the screen can be built up at the required size

● The three-dimensional maintenance and the single pixel have been really realized.

Product Model	Indoor Fixed F6	Indoor Fixed F5	Indoor Fixed F4	Indoor Fixed F3	Indoor Fixed F2.5
Pixel Pitch	6mm	5 mm	4 mm	3 mm	2.5mm
Module Size	192x192mm	160x160 mm	256x128 mm	192x192mm	160x160 mm
Module Resolution	32x32 pixels	32x32 pixels	64x32 pixels	64x64 pixels	64x64 pixels
LED	SMD3528	SMD3528	SMD2121	SMD2121	SMD2121
Standard Cabinet Size	960x960 mm	960x960 mm	768x768mm	576x576mm	480x480 mm
Standard Cabinet Resolution	160x160 pixels	192x192 pixels	192x192pixels	192x192pixels	192x192 pixels
Standard Cabinet	Iron	Iron	Iron	Iron	Iron
Physical Density	27777 Pixels/m2	40000 Pixels/m2	62500 Pixels/m2	62500 Pixels/m2	40000 Pixels/m2
White Balance Luminance	≥1500 nits	≥1500 nits	≥1200 nits	≥1200 nits	≥1200 nits
Gray Scale per Color	16384 level	16384 level	16384 level	16384 level	16384 level
Contrast	1000:1	1000:1	1000:1	1000:1	1000:1
Refresh Frequency	≥960 Hz	≥960Hz	≥960 Hz	≥960 Hz	≥960Hz
Visual Angle(Horizontal/Vertical)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
Max Power	600 W/m2	600 W/m2	650 W/m2	650 W/m2	700 W/m2
Average Power	200 W/m2	200 W/m2	220 W/m2	220 W/m2	250 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20℃～50℃	-20℃～50℃	-20℃～50℃	-20℃～50℃	-20℃～50℃
Operating Humidity	10%RH～95%RH	10%RH～95%RH	10%RH～95%RH	10%RH～95%RH	10%RH～95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP
